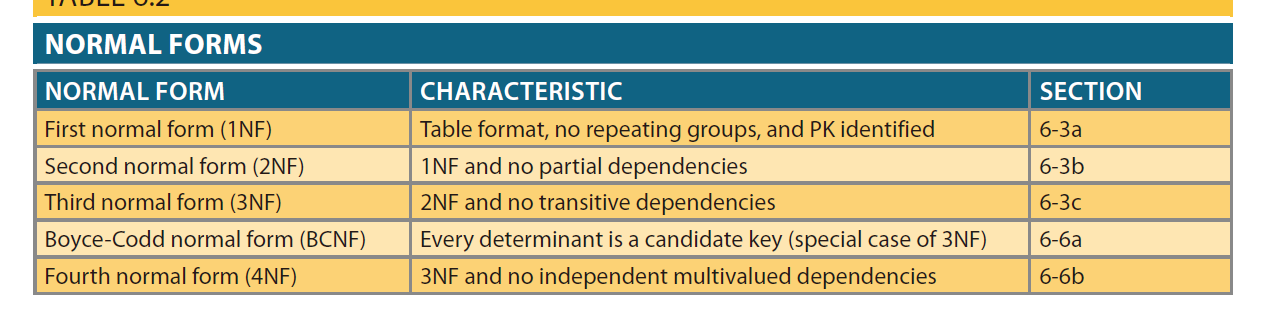

Normalization

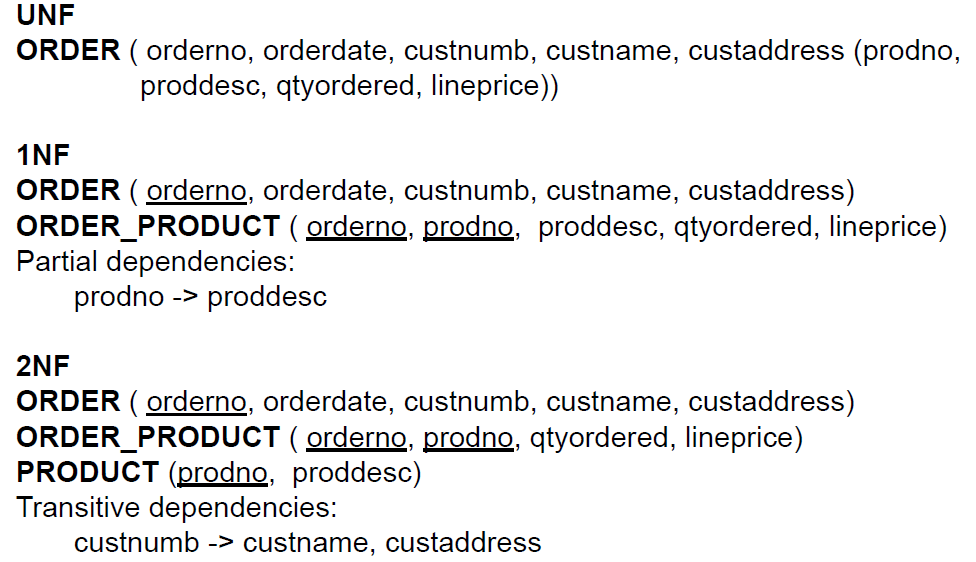

▪UNF to 3 NF

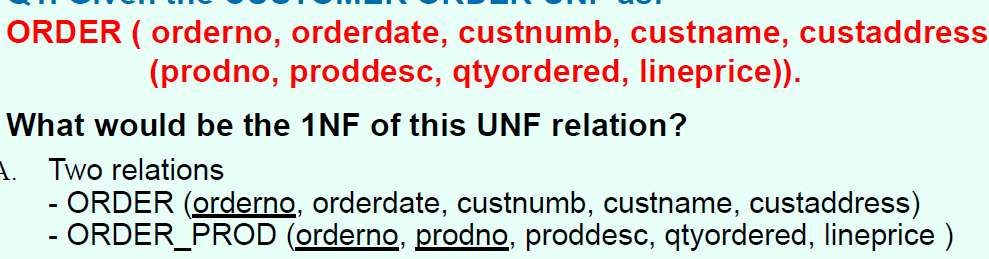

–UNF to 1 NF
– remove repeating group along with the PK of the main relation.

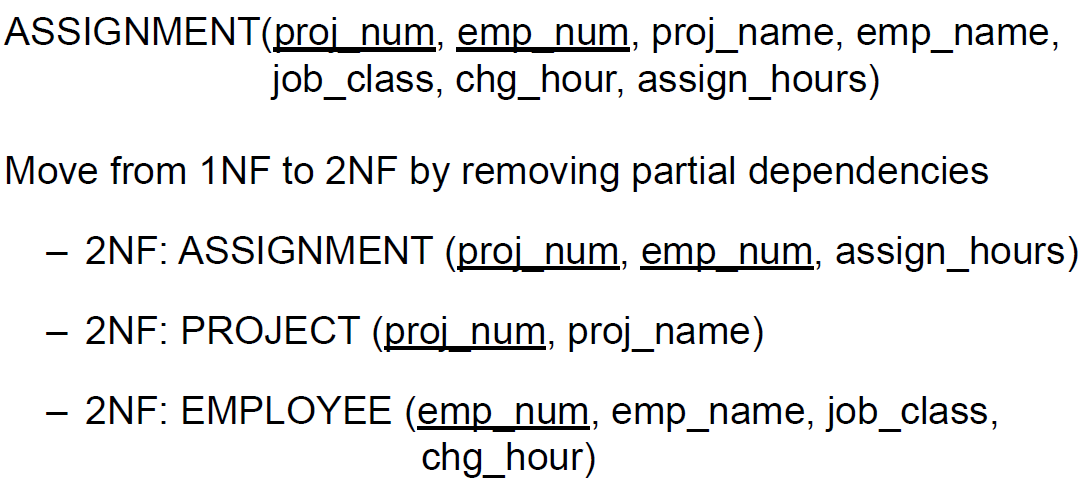

–1NF to 2 NF
– remove partial dependency (general definition)
partial dependency: exists when there is a functional dependence in which the determinant is only
part of the primary key [only part of the primary key (B) is needed to determine the value of C]
【主键的部分决定的依赖关系】

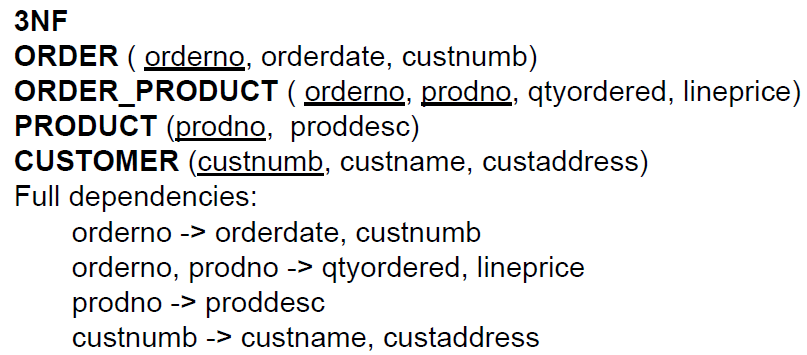

–2NF to 3NF
 – remove transitive dependency.
transitive dependency exists when there are functional dependencies such that
X Y, YZ, and X is the primary key【两个键都不是主键，但两者存在依赖关系】
▪Dependency diagrams
▪Be careful in choosing the PK!



▪Mapping a set of 3NF relations to a logical model
